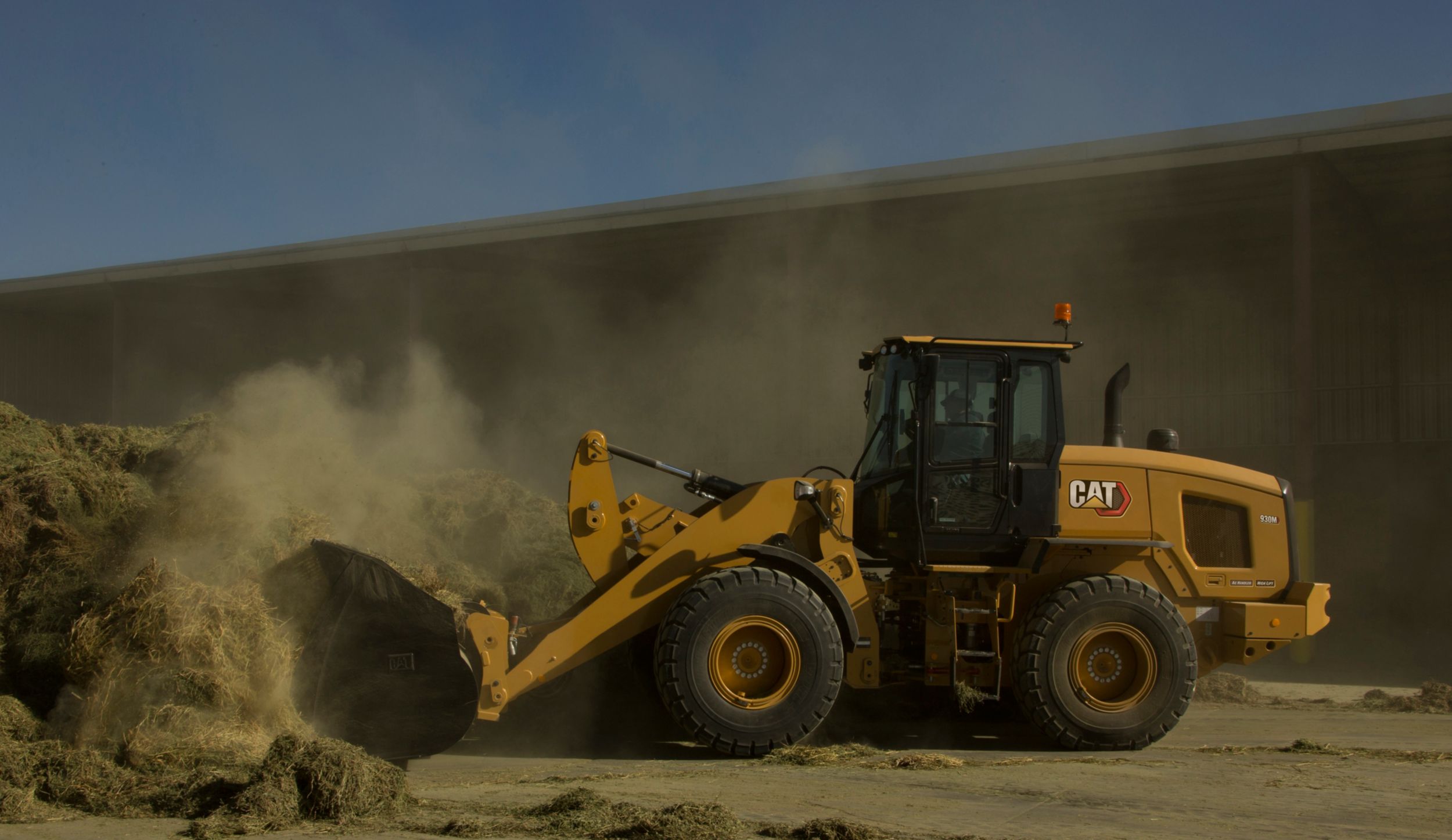

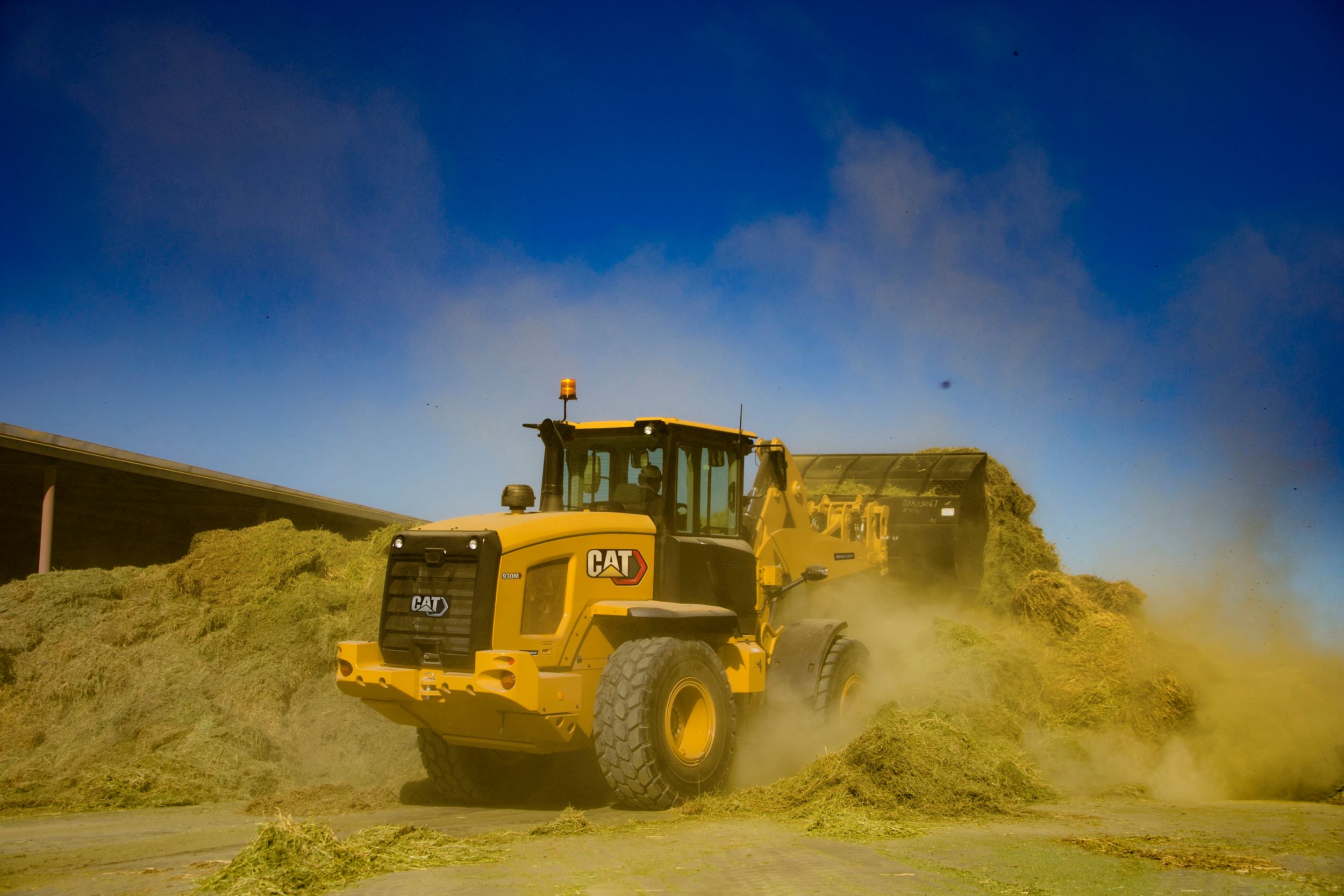

Small Wheel Loaders 930M Ag Handler

Cat® Small Wheel Loaders provide superior performance and versatility to help you get more done. Built to the same tough standards as the larger Cat Wheel Loaders, these machines are ideal for a wide range of jobs.

Download product brochure #1

Small Wheel Loaders 930M Ag Handler

Download product brochure #1

(416) 667-5511

Request a Quote

Find a dealer near you

Units: US Metric

Axles

Specification	Value
Rear	Oscillating ±11 degrees; Open differential (standard); Limited slip differential (optional)
Front	Fixed; Locking differential (standard)

Units: US Metric

Buckets

Specification	Value
Bucket Capacities	3.1-5.0 m3 (4.0-6.5 yd3)
Bucket Capacities - Light Material	3.1-5.0 m3 (4.0-6.5 yd3)

Units: US Metric

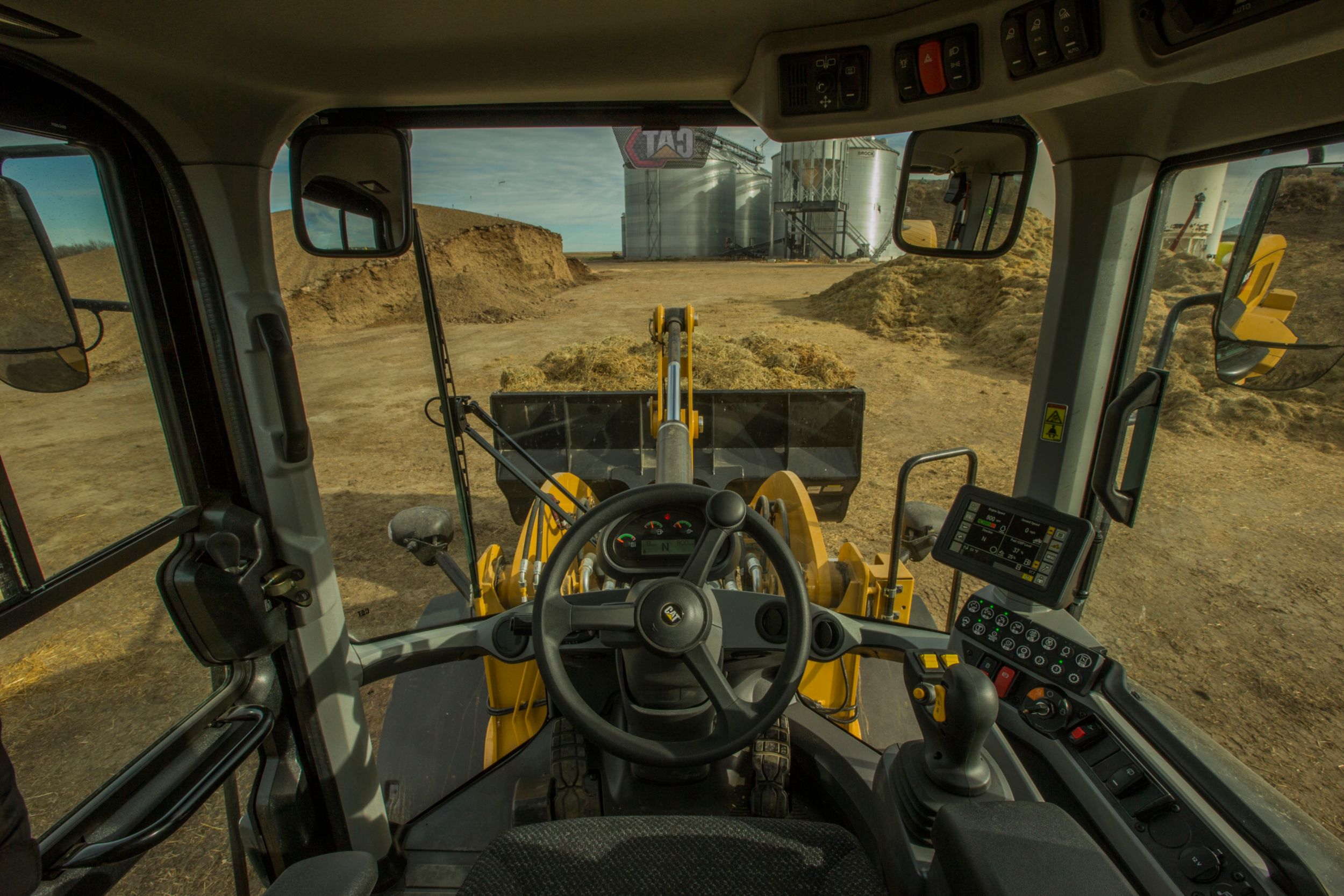

Cab

Specification	Value
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level II
Note (2)	*The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (1)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, are: – Standard cab: 68 ±3 dB(A) – Deluxe cab: 66 ±2 dB(A)

Units: US Metric

Dimensions and Operating Specifications (Approximate) - 3.1 m³ (4.1 yd³) Bucket

Specification	Value
Dig Depth**	5.3 in 135 mm
Height - Bucket Pin**	14.42 ft 4400 mm
Tipping Load - Straight - ISO 14397-1*	16430 lb 7453 kg
Turning Radius - Over Bucket	20.92 ft 6392 mm
Length - Overall*	27.25 ft 8323 mm
Clearance - Level Bucket**	13.33 ft 4073 mm
Height - Ground Clearance**	1.25 ft 397 mm
Height - Overall**	18.67 ft 5697 mm
Clearance - Bucket at 45° *	10.42 ft 3177 mm
Rack Angle at Carry	48 degrees
Note (2)	**Vary with tire.
Breakout*	18808 lb 8532 kg
Length - Wheel Base	9.83 ft 3000 mm
Dump Angle at Full Lift	44 degrees
Operating Weight*	31876 lb 14459 kg
Width - Tread Center	6.25 ft 1930 mm
Length - Rear Axle to Bumper	6.5 ft 1993 mm
Reach - Bucket at 45°*	4.42 ft 1350 mm
Height - Ground Axle Center**	2.17 ft 685 mm
Width - Over Tires	8.33 ft 2540 mm
Articulation Angle	40 degrees
Width - Bucket	9 ft 2750 mm
Tipping Load - Full Turn - ISO 14397-1*	13934 lb 6320 kg
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	51 degrees
Turning Radius - Outside of Tires	17.67 ft 5402 mm
Carry Height - Bucket Pin	2 ft 613 mm
Clearance - Loadover Height**	11.58 ft 3550 mm
Height - Ground to Beacon**	12.08 ft 3707 mm
Height - Ground to Cab**	10.92 ft 3340 mm
Note (1)	*Vary with bucket.
Length - Hitch to Front Axle	4.92 ft 1500 mm
Departure Angle	33 degrees
Note (3)	Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.

Units: US Metric

Dimensions and Operating Specifications (Approximate) - 3.5 m³ (4.6 yd³) Bucket

Specification	Value
Reach - Bucket at 45°*	4.67 ft 1424 mm
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	51 degrees
Dump Angle at Full Lift	44 degrees
Departure Angle	33 degrees
Breakout*	17246 lb 7823 kg
Tipping Load - Straight - ISO 14397-1*	16070 lb 7290 kg
Clearance - Level Bucket**	13.33 ft 4073 mm
Clearance - Bucket at 45° *	10.17 ft 3107 mm
Length - Wheel Base	9.83 ft 3000 mm
Width - Over Tires	8.33 ft 2540 mm
Rack Angle at Carry	48 degrees
Length - Overall*	27.58 ft 8425 mm
Width - Bucket	9 ft 2750 mm
Length - Hitch to Front Axle	4.92 ft 1500 mm
Turning Radius - Outside of Tires	17.67 ft 5402 mm
Articulation Angle	40 degrees
Dig Depth**	5.3 in 135 mm
Clearance - Loadover Height**	11.58 ft 3550 mm
Turning Radius - Over Bucket	21.92 ft 6427 mm
Height - Ground to Beacon**	12.08 ft 3707 mm
Height - Overall**	19 ft 5802 mm
Operating Weight*	32136 lb 14577 kg
Carry Height - Bucket Pin	2 ft 613 mm
Tipping Load - Full Turn - ISO 14397-1*	13592 lb 6166 kg
Height - Ground to Cab**	10.92 ft 3340 mm
Height - Bucket Pin**	14.42 ft 4400 mm
Width - Tread Center	6.25 ft 1930 mm
Length - Rear Axle to Bumper	6.5 ft 1993 mm
Note (2)	**Vary with tire.
Height - Ground Axle Center**	2.17 ft 685 mm
Note (1)	*Vary with bucket.
Height - Ground Clearance**	1.25 ft 397 mm
Note (3)	Dimensions listed are for a 930M Ag Handler High Lift configured with Fusion™ light material bucket, bolt-on cutting edge, logger/aggregate counterweights, additional guarding, 80 kg (176 lb) operator and Michelin 20.5 R25 (L-3) XHA2 tires.

Units: US Metric

Engine

Specification	Value
Maximum Gross Power	168 HP 125 kW
Rated Net Power - 1,600 rpm - SAE J1349 at Maximum Fan Speed (Standard Power Mode; Speed Range 1-3*)	141 HP 105 kW
Maximum Gross Power - ISO 14396 (Standard Power Mode: Range 1-3*)	160 HP 119 kW
Rated Net Power - 1,600 rpm - ISO 9249 (DIN) (Standard Power Mode: Speed Range 1-3*)	158 HP 116 kW
Engine Model	Cat® C7.1
Maximum Gross Power - Maximum Engine Speed (Standard Power Mode: Range 1-3*)	1600 r/min 1600 r/min
Rated Net Power - 1,600 rpm - SAE J1349 (Standard Power Mode: Speed Range 1-3*)	154 HP 115 kW
Maximum Gross Power - ISO 14396 (DIN) (Standard Power Mode: Range 1-3*)	162 HP 121 kW
Maximum Gross Torque - ISO 14396 (Performance Power Mode: Range 1-4)	592 ft·lbf 804 N·m
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode; Speed Range 1-4)	572 ft·lbf 776 N·m
Displacement (Standard Power Mode: Speed Range 1-3*)	427 in³ 7.01 l
Rated Net Power - 1,800 rpm - SAE J1349 (Performance Power Mode: Speed Range 1-4)	157 HP 117 kW
Maximum Gross Power - Maximum Engine Speed (Performance Power Mode: Range 1-4)	1800 r/min 1800 r/min
Displacement (Performance Power Mode: Speed Range 1-4)	427 in³ 7.01 l
Rated Net Power - 1,800 rpm - ISO 9249 (DIN) (Performance Power Mode: Speed Range 1-4)	162 HP 119 kW
Emissions	Engine meets U.S. EPA Tier 4 Final emission standards.
Maximum Net Torque - ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode; Speed Range 1-3*)	572 ft·lbf 776 N·m
Rated Net Power - 1,800 rpm - SAE J1349 at Maximum Fan Speed (Performance Power Mode; Speed Range 1-4)	143 HP 107 kW
Maximum Net Torque - SAE J1349 (Standard Power Mode; Speed Range 1-3*)	566 ft·lbf 768 N·m
Maximum Gross Torque - ISO 14396 (Standard Power Mode: Range 1-3*)	592 ft·lbf 804 N·m
Maximum Gross Power - ISO 14396 (DIN) (Performance Power Mode: Range 1-4)	170 HP 127 kW
Note (2)	Spark arrester performance as standard – Meets the performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test) and U.S. Forestry Service SAE J350.
Note (3)	*Range 4 power is boosted to be the same as Performance Mode.
Maximum Gross Power - ISO 14396 (Performance Power Mode: Range 1-4)	168 HP 125 kW
Note (1)	Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner and diesel exhaust filter.
Maximum Net Torque - SAE J1349 (Performance Power Mode; Speed Range 1-4)	566 ft·lbf 768 N·m

Units: US Metric

Loader Hydraulic System

Specification	Value
Relief Pressure - Tilt Cylinder	4351 psi 30000 kPa
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Total Cycle Time	8.2 s 8.2 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Total Cycle Time	7.5 s 7.5 s
Relief Pressure - Tilt Cylinder - 4th Function Maximum Working Pressure	4061 psi 28000 kPa
Maximum Flow - Implement Pump	50 gal/min 190 l/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	42 gal/min 160 l/min
Maximum Flow - Implement Pump - 3rd Function*	50 gal/min 190 l/min
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Dump, at Maximum Lift Height	1.6 s 1.6 s
Note	*Adjustable from 20% to 100% of maximum flow through the secondary display, when equipped.
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Float Down, Maximum Lift to Ground Level	1.8 s 1.8 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Float Down, Maximum Lift to Ground Level	1.8 s 1.8 s
Relief Pressure - Tilt Cylinder - 3rd Function Maximum Working Pressure	4061 psi 28000 kPa
Maximum Working Pressure - Implement Pump	4061 psi 28000 kPa
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Raise, Ground Level to Maximum Lift	4.3 s 4.3 s
Hydraulic Cycle Time - Performance Mode at 1,800 rpm - Dump, at Maximum Lift Height	1.4 s 1.4 s
Hydraulic Cycle Time - Standard Mode at 1,600 rpm - Raise, Ground Level to Maximum Lift	4.8 s 4.8 s

Units: US Metric

Service Refill Capacities

Specification	Value
Transmission - Gear Box	2.2 gal (US) 8.5 l
Cooling System	7.9 gal (US) 30 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l
Fuel Tank	51.5 gal (US) 195 l
Axles - Rear	6.6 gal (US) 25 l
Hydraulic System - Including Tank	43.6 gal (US) 165 l
Engine Crankcase	5.3 gal (US) 20 l
Axles - Front	6.9 gal (US) 26 l
Hydraulic Tank	23.8 gal (US) 90 l
Note	DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

Units: US Metric

Steering

Specification	Value
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.5 turns 3.5 turns
Steering Cycle Times - Full Left to Full Right - At 1,800 rpm: 90 rpm Steering Wheel Speed	2.4 s 2.4 s
Maximum Steering Torque - 40° (Full Turn)	27747 ft·lbf 37620 N·m
Maximum Flow - Steering Pump	34 gal/min 130 l/min
Maximum Steering Torque - 0° (Straight Machine)	37155 ft·lbf 50375 N·m
Maximum Working Pressure - Steering Pump	3500 psi 24130 kPa
Steering Articulation Angle - Each Direction	40°

Units: US Metric

Tires

Specification	Value
Standard Size	20.5 R25, radial (L-3)
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2)	In certain applications, the loader's productive capabilities may exceed the tire's tonnes-km/h (ton-mph) capabilities.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Other Choices Include	20.5 R25, radial (L-2); 20.5-25 12PR (L-2); 20.5-25 12PR (L-3)

Units: US Metric

Transmission

Specification	Value
Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h 13 km/h
Forward and Reverse - Range 4	25 mile/h 40 km/h
Note	*Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display, when equipped. Factory default is 7 km/h (4.4 mph).
Forward and Reverse - Range 3	17 mile/h 27 km/h
