New Equipment

We supply the best heavy equipment so you can build a better business!

Toromont Cat is the trusted dealership in Canada for authentic Caterpillar heavy equipment. We have a wide selection of Cat equipment that includes over 300 machines and 1,200 specialized product attachments for projects in a variety of industries such as construction, mining and forestry. With our extensive product line and first-class customer service, we aim to be your first choice when looking for new heavy equipment.

Caterpillar equipment is recognized and respected globally for its reliability and durability, and at Toromont Cat, we proudly maintain all of our new construction equipment to the highest standards so that it exceeds your expectations on the job site. Whether you’re looking for wheel loaders, excavators, dozers or articulated trucks, you can count on us to help you complete your projects with cost-effective and technologically advanced solutions.

When you choose to buy new heavy equipment with us, you will always be provided with quality machines and superior after-sales support.

If you’re currently working on a project that requires new heavy equipment, call us today!

To see all of our new heavy equipment currently for sale, click on the images below:

(416) 667-5511

Request a Quote

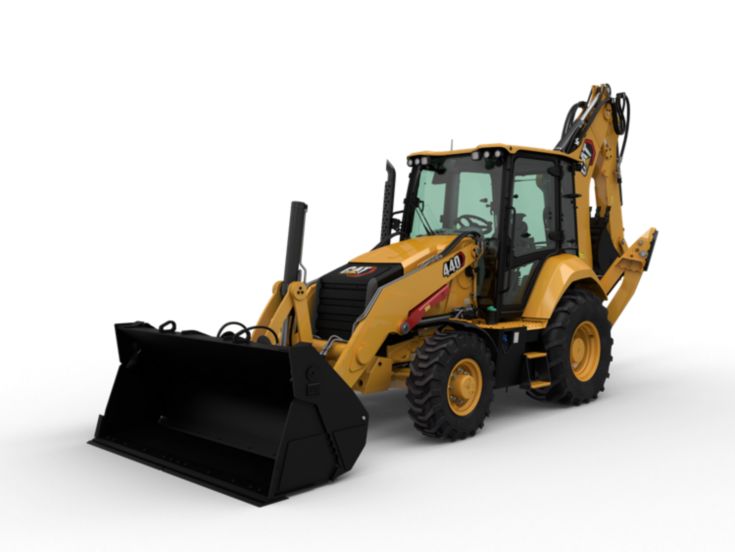

Center-Pivot Backhoe Loaders 440

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

Images
Videos

Download product brochure #1

Download product brochure #2

Center-Pivot Backhoe Loaders 440

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

Download product brochure #1

Download product brochure #2

(416) 667-5511

Request a Quote

Find a dealer near you

Units: US Metric

Axle Ratings

Specification	Value
Front Axle, AWD - Static	50565 lb 22936 kg
Front Axle (4WD) - Dynamic	20233 lb 9186 kg
Rear Axle - Static	50565 lb 22936 kg
Rear Axle - Dynamic	20225 lb 9174 kg
Front Axle, AWD - Dynamic	20225 lb 9174 kg
Front Axle (4WD) - Static	50582 lb 22964 kg

Units: US Metric

Backhoe

Specification	Value
Dig Depth - Standard	15.5 ft 4718 mm

Units: US Metric

Counterweights - Front - Minimum Recommendations

Specification	Value
Standard Stick - GP Loader Bucket - 4WD	255 lb 116 kg
Standard Stick - MP Loader Bucket - 4WD	no counterweight

Units: US Metric

Engine

Specification	Value
Net Power - SAE J1349	104 HP 78 kW
Bore	4.13 in 105 mm
Stroke	5 in 127 mm
Displacement	268 in³ 4.4 l
Net Peak Power - 1,800 rpm - ISO 9249	73 HP 54 kW
Ratings at 2,200 rpm - Gross Power SAE J1995	118 HP 88 kW
Gross Power - SAE J1995	74 HP 55 kW
Net Peak Power Rating - ISO 9249 at 1,800 rpm	108 HP 80.7 kW
Net Torque Rise - 1,200 rpm	88 % 88 %
Net Peak Power - 1,800 rpm - EEC 80/1269	73 HP 54 kW
Net Power - 2,200 rpm - SAE J1349	68 HP 51 kW
Gross Power - ISO 14396	74 HP 55 kW
Rated Net Power - 2,200 rpm - EEC 80/1269	69 HP 51 kW
Net Power Rating at 2,200 rpm - ISO 9249	104 HP 78 kW
Engine Model	C4.4 ACERT 87 kW (116 hp) Electronic – Turbo Intercooled
Ratings at 2,200 rpm - Gross Power ISO 14396	116 HP 87 kW
Net Peak Power - 1,800 rpm - SAE J1349	72 HP 54 kW
Net Torque Rise - 1,400 rpm - SAE J1349	360 ft·lbf 487 N·m
Net Peak Power Rating - SAE J1349 at 2,100 rpm	108 HP 80.7 kW
Rated Net Power - 2,200 rpm - ISO 9249	68 HP 51 kW
Net Torque Rise - 1,400 rpm	44%
Power Rating Conditions - No De-Rating Required Up To	7500 ft 2286 m
Net Power Rating at 2,200 rpm - SAE J1349	104 HP 78 kW
Emissions	Engine meets U.S. EPA Tier 4 Final emission standards.
Net Peak Torque SAE J1349	307 ft·lbf 416 N·m
Note	No derating required up to 2286 m (7,500 ft).

Units: US Metric

Hydraulic System

Specification	Value
Pump Type	Variable Flow, Axial Piston
System Pressure - Loader	3800 psi 26200 kPa
Pump Capacity at 2,200 rpm	58.1 gal/min 220 l/min
System Pressure - Hitch/Box Scraper	2973 psi 20500 kPa
Type	Closed Center
System Pressure - Backhoe	3800 psi 26200 kPa

Units: US Metric

Loader Bucket

Specification	Value
Dig Depth - Standard	3 in 83 mm

Units: US Metric

Service Refill Capacities

Specification	Value
Hydraulic System	23.8 gal (US) 90 l
Engine Oil - With Filter	2.3 gal (US) 8.8 l
Rear Axle - Planetaries	0.4 gal (US) 1.7 l
Cooling System with Cab Heater	6 gal (US) 22.5 l
Hydraulic System (Minimum)	31.7 gal (US) 120 l
Transmission - Power Shuttle - 2WD	4 gal (US) 15 l
Cooling System with Air Conditioning	4.4 gal (US) 16.5 l
Fuel Tank	42.3 gal (US) 160 l
Transmission (Autoshift) - AWD, Autoshift	4.8 gal (US) 18 l
Planetaries	0.2 gal (US) 0.7 l
Rear Axle	4.4 gal (US) 16.5 l
Transmission - Power Shuttle - 4WD	4 gal (US) 15 l
Front Axle (Center Housing)	2.9 gal (US) 11 l
Rear Axle (Center Housing)	4.4 gal (US) 16.5 l
Hydraulic Tank (Nominal)	14.3 gal (US) 54 l
Front Axle (4WD) - Planetaries	0.2 gal (US) 0.7 l
Diesel Exhaust Fluid (DEF)	5 gal (US) 19 l
Front Axle (4WD)	2.9 gal (US) 11 l
Note	Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Hydraulic Tank	10.6 gal (US) 40 l

Units: US Metric

Steering

Specification	Value
Rod Diameter	1.65 in 42 mm
Stroke	9.29 in 236 mm
Turning Circle (inner wheel not braked) - Outside Front Wheels	27.33 ft 8.33 m
Note	AWD cylinder, one (1) double-acting.
Bore	3.35 in 85 mm
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket	37.75 ft 11.5 m
Power Steering	Hydrostatic HMU
Type	Front Wheel
Axle Oscillation	11°
Turning Circle - (inner wheel not braked) - Outside Front Wheels	26.8 ft 8.18 m
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket	36 ft 10.97 m

Units: US Metric

Tires

Specification	Value
Standard Configuration of Front/Rear Tires	Front: 12.5 80/16.9; Rear: 16.9-24

Units: US Metric

Transmission

Specification	Value
Autoshift Transmission - Reverse - 1st	3.7 mile/h 5.9 km/h
Power Shuttle Transmission - Forward 3rd	13 mile/h 20 km/h
Power Shuttle Transmission - Reverse 2nd	5.5 mile/h 8.9 km/h
Autoshift Transmission - Forward - 6th	24.4 mile/h 39.2 km/h
Power Shuttle Transmission - Reverse 4th	23 mile/h 36 km/h
Autoshift Transmission - Reverse - 3rd	16.7 mile/h 26.8 km/h
Power Shuttle Transmission - Forward 2nd	5.5 mile/h 8.9 km/h
Note	Travel speeds of backhoe loader in two wheel drive at full throttle, when equipped with 500/70-24 rear tires.
Autoshift Transmission - Forward - 1st	3.7 mile/h 5.9 km/h
Autoshift Transmission - Forward - 3rd	7.7 mile/h 12.4 km/h
Autoshift Transmission - Forward - 4th	12.2 mile/h 19.6 km/h
Power Shuttle Transmission - Forward 4th	23 mile/h 36 km/h
Power Shuttle Transmission - Reverse 1st	3.4 mile/h 5.4 km/h
Autoshift Transmission - Forward - 2nd	5.9 mile/h 9.5 km/h
Power Shuttle Transmission - Forward 1st	3.4 mile/h 5.4 km/h
Autoshift Transmission - Reverse - 2nd	7.7 mile/h 12.4 km/h
Autoshift Transmission - Forward - 5th	16.7 mile/h 26.8 km/h
Power Shuttle Transmission - Reverse 3rd	13 mile/h 20 km/h

Units: US Metric

Weights

Specification	Value
Operating Weight - Maximum	29321 lb 13300 kg
Cab - ROPS/FOPS	359 lb 163 kg
Air Conditioning	101 lb 46 kg
Operating Weight - Estimated*	21544 lb 9772 kg
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks	2018 lb 915 kg
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On)	+160 kg (+353 lb)
Cab, ROPS/FOPS	+243 kg (+536 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On)	+214 kg (+472 lb)
Extendible Stick	+301 kg (+664 lb)
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks	3622 lb 1642 kg
Loader Quick Coupler	+250 kg (+551 lb)
Front Counterweight - Counterweights - Option 1	255 lb 115 kg
Note (2)	GP = General Purpose
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On)	–73 kg (–162 lb)
Note (4)	HD = Heavy Duty
Front Counterweight - Counterweights - Option 2	530 lb 240 kg
Operating Weight - Maximum - ROPS Capacity	29321 lb 13300 kg
Counterweight	1102 lb 500 kg
Backhoe Quick Coupler	+87 kg (+192 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On)	+85 kg (+187 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On)	+290 kg (+639 lb)
Note (1)	*Machine equipped with 340/80-18 front and 500/70-24 rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") severe-duty backhoe bucket.
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On)	+80 kg (+176 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On)	–150 kg (–331 lb)
Note (5)	ED = Extreme Duty
Note (3)	MP = Multi Purpose
Front Counterweight - Counterweights - Option 3	1015 lb 460 kg
Rear Counterweight	198 lb 90 kg
