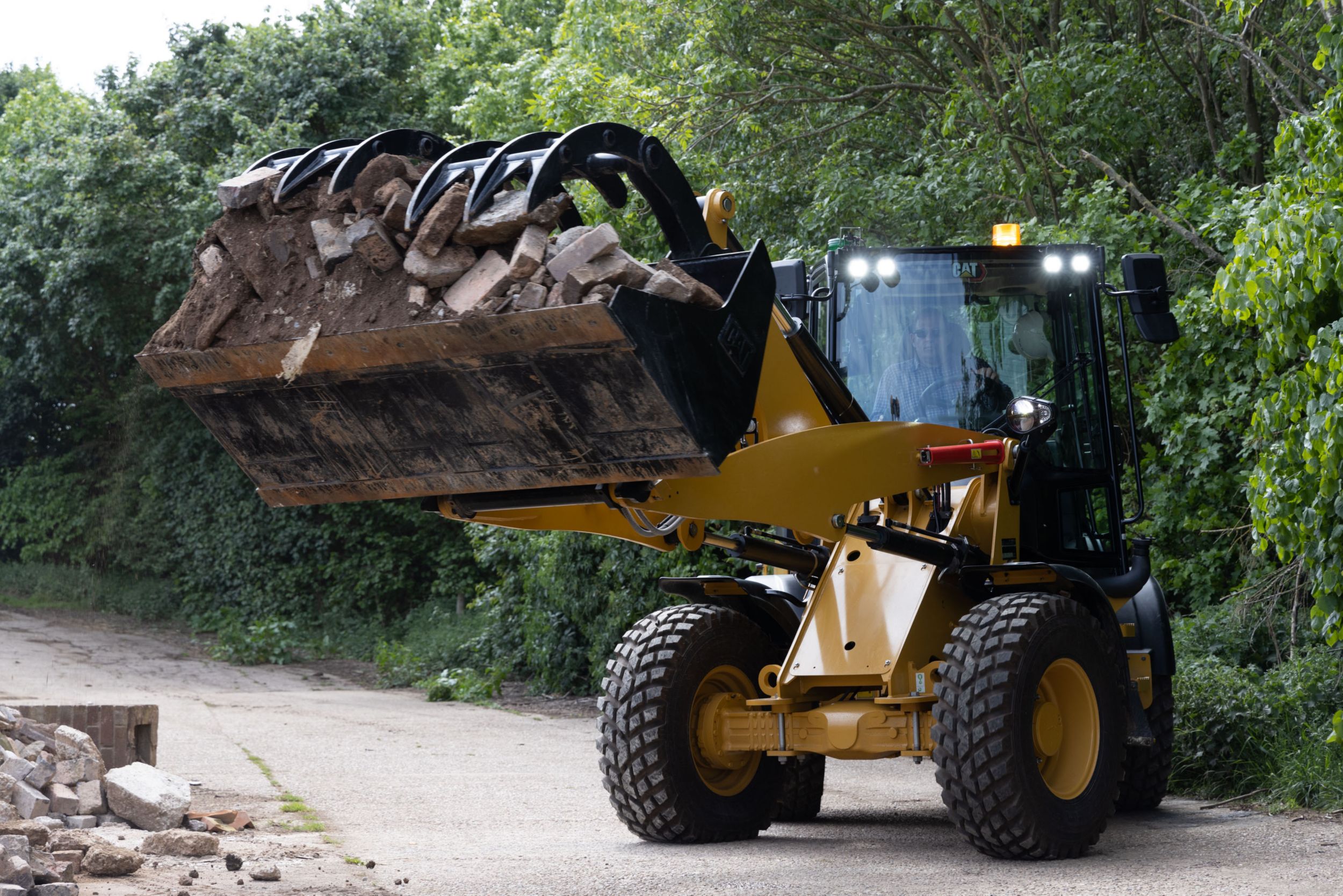

Compact Wheel Loaders 907

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Compact Wheel Loaders 907

Cat® Compact Wheel Loaders deliver high performance, versatility, and precision in any application.

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

1-800-268-1965

Request a Quote

Find a dealer near you

Units: US Metric

Axles

Specification	Value
Front	Fixed (standard), Locking Differential (optional)
Rear	Fixed (standard), Locking Differential (optional)
Note	Oscillation of ±11 degrees via hitch between front and rear frames.

Units: US Metric

Buckets

Specification	Value
Bucket Capacities	0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose	0.80-1.35 m³ (1.0-1.7 yd³)
Bucket Capacities - Light Material	1.25-1.55 m³ (1.6-2.0 yd³)
Multi-Purpose	0.75-1.1 m³ (1.0-1.4 yd³)
Note	Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)	Bucket capacities stated include BOCE, in line with ISO 7546.

Units: US Metric

Cab

Specification	Value
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level II
Note (1)	Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).
Note (3)	*Measurements were conducted with the cab doors and windows closed.
Note (4)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.

Units: US Metric

Dimensions - With HPL-V Coupler - Approximate#

Specification	Value
Height: Ground to Cab**	8.5 ft 2592 mm
Height: Ground to Beacon**	9.08 ft 2774 mm
Height: Ground Axle Center**	1.58 ft 480 mm
Height: Ground Clearance**	1 ft 300 mm
Length: Overall*	17.58 ft 5366 mm
Length: Rear Axle to Bumper	4.58 ft 1391 mm
Length: Hitch to Front Axle	3.58 ft 1085 mm
Length: Wheel Base	7.08 ft 2170 mm
Length: Front Axle to Front of Coupler	3.5 ft 1065 mm
Clearance: Bucket at 45° *	8.25 ft 2505 mm
Clearance: Load over Height**	9.5 ft 2902 mm
Clearance: Level Bucket**	9.92 ft 3037 mm
Height: Bucket Pin**	10.67 ft 3251 mm
Height: Overall**	13.5 ft 4122 mm
Reach: Bucket at 45° *	2.33 ft 714 mm
Carry Height: Bucket Pin	1.08 ft 324 mm
Dig Depth**	0.33 in 113 mm
Width: Bucket	6.75 ft 2045 mm
Width: Tread Center	4.67 ft 1420 mm
Turning Radius: Over Bucket	14.75 ft 4489 mm
Width: Over Tires	6.07 ft 1848 mm
Turning Radius: Outside of Tires	12.92 ft 3925 mm
Turning Radius: Inside of Tires	6.75 ft 2057 mm
Rack Angle at Full Lift	56°
Dump Angle at Full Lift	45°
Rack Angle at Carry	51°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	12689 lb 5756 kg
Tipping Load - Straight - ISO 14397-1?†	9773 lb 4433 kg
Tipping Load - Full Turn - ISO 14397-1?†	8235 lb 3735 kg
Operating Weight: Carriage and Tines?^^	12220 lb 5543 kg
Tipping Load - Straight?†	7807 lb 3541 kg
Tipping Load - Full Turn?†	6569 lb 2980 kg
80% of Tip: Firm and Level EN474-3?††	5255 lb 2384 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R18 tires and 1.05 m3 (1.4 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.

Units: US Metric

Dimensions - With SSL Coupler - Approximate

Specification	Value
Height - Ground to Cab	8.5 ft 2591 mm
Height: Ground to Beacon**	9.08 ft 2774 mm
Height: Ground Axle Center**	1.58 ft 480 mm
Height - Ground Clearance	1 ft 300 mm
Length - Overall with Bucket	18.17 ft 5525 mm
Length: Rear Axle to Bumper	4.58 ft 1391 mm
Length: Hitch to Front Axle	3.58 ft 1085 mm
Length - Wheel Base	7.08 ft 2170 mm
Length: Front Axle to Front of Coupler	4.33 ft 1316 mm
Clearance - Bucket at 45°	7.83 ft 2392 mm
Clearance: Load over Height**	9.5 ft 2902 mm
Clearance - Level Bucket	9.92 ft 3028 mm
Height - Bucket Pin	10.67 ft 3251 mm
Height: Overall**	13.83 ft 4212 mm
Reach - Bucket at 45°	2.67 ft 813 mm
Carry Height: Bucket Pin	1.17 ft 346 mm
Dig Depth	3 in 85 mm
Width - Bucket	6.75 ft 2045 mm
Width - Tread Center	4.67 ft 1420 mm
Turning Radius - Over Bucket	15 ft 4563 mm
Width - Over Tires	6.08 ft 1848 mm
Turning Radius: Outside of Tires	12.92 ft 3925 mm
Turning Radius - Inside Tire	6.75 ft 2057 mm
Rack Angle at Full Lift	51°
Dump Angle at Full Lift	50°
Rack Angle at Carry	46°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket?^	12897 lb 5842 kg
Tipping Load – Straight – ISO 14397-1?†	8653 lb 3925 kg
Tipping Load – Full Turn – ISO 14397-1?†	7257 lb 3292 kg
Operating Weight: Carriage and Tines?^^	12414 lb 5631 kg
Tipping Load - Straight?†	7416 lb 3364 kg
Tipping Load - Full Turn?†	6266 lb 2842 kg
80% of Tip: Firm and Level EN474-3?††	5013 lb 2274 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL),1.05 m3 (1.4 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R18 tires and 1.05 m3 (1.4 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9)	Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9.

Units: US Metric

Engine

Specification	Value
Maximum Gross Power	74.7 hp 55.7 kW
Engine Model	Cat C2.8*
Maximum Engine Speed	2550 rpm
Maximum Gross Power - Rated Engine Speed	2400 r/min 2400 r/min
Maximum Gross Power - SAE J1995	74.7 hp 55.7 kW
Maximum Gross Power - ISO 14396	74.3 hp 55.4 kW
Maximum Gross Power - ISO 14396 (metric)	75.3 mhp 75.3 mhp
Rated Net Power - Rated Engine Speed	2400 r/min 2400 r/min
Rated Net Power - SAE J1349	72.7 hp 54.2 kW
Rated Net Power - ISO 9249	72.1 hp 53.8 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric)	73.1 mhp 73.1 mhp
Maximum Gross Torque - SAE J1995	222 lb/ft 300 N·m
Maximum Gross Torque - ISO 14396	221 lb/ft 300 N·m
Maximum Net Torque - SAE J1349	218 lb/ft 296 N·m
Maximum Net Torque - ISO 9249	217 lb/ft 295 N·m
Displacement	171 in³ 2.8 l
Bore	3.54 in 90 mm
Stroke	4.33 in 110 mm
Note	*Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at the flywheel.
Note (3)	#Maximum gross and net torque measured at 1,600 rpm.

Units: US Metric

Loader Hydraulic System

Specification	Value
Main Relief - 1st Auxiliary (3rd slice)	3408 psi 23500 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*	21 gal/min 80 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow*	32 gal/min 120 l/min
Main Relief - 2nd Auxiliary (4th slice)	3408 psi 23500 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow	12 gal/min 45 l/min
Hydraulic Cycle Time - Rackback	2.2 s 2.2 s
Hydraulic Cycle Time - Lift	5 s 5 s
Hydraulic Cycle Time - Dump	1.6 s 1.6 s
Hydraulic Cycle Time - Float Down	2.8 s 2.8 s
Note	* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Units: US Metric

Service Refill Capacities

Specification	Value
Fuel Tank	24 Gal 90 l
Cooling System	3.2 Gal 12 l
Engine Crankcase	2.3 Gal 8.8 l
Axles - Front Center Differential	2.3 Gal 8.8 l
Axles - Rear Center Differential	2.3 Gal 8.8 l
Hydraulic System - Including Tank	17.8 Gal 67.5 l
Hydraulic Tank	11.8 Gal 44.6 l
Transmission	0.6 Gal 2.4 l
Note	No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Units: US Metric

Steering

Specification	Value
Steering Articulation Angle - Each Direction	39 ° 39 °
Maximum Flow - Steering Pump	12.3 gal/min 46.7 l/min
Maximum Working Pressure - Steering Pump	3336 psi 23000 kPa
Steering Cycle Times – (full left to full right) – at High Idle	2.8 s 2.8 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.25 turns or 4.00 turns

Units: US Metric

Sustainability

Specification	Value
Recyclability	93%

Units: US Metric

Tires

Specification	Value
Tire Size - Standard	*405/70 R18 SPT9
Tire Size - Optional	405/70 R18 Powerloads
Tire Size - Optional (1)	340/80 R18 XMCL/Bibload
Tire Size - Optional (2)	340/80 R18 TRI 2
Tire Size - Optional (3)	40X14-20 TL, SM/TR
Tire Size - Optional 4	340/80 R18 Duraforce
Note	*This tire has been used for all dimension, stability and performance data.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Units: US Metric

Transmission

Specification	Value
Forward and Reverse - Speed Range Creep#	6 mile/h 10 km/h
Forward and Reverse - Speed Range 1*	6 mile/h 10 km/h
Forward and Reverse - Speed Range 2** - High Speed	10.5 mile/h 17 km/h
Forward and Reverse - Speed Range 2** - Standard	12 mile/h 20 km/h
Forward and Reverse - Speed Range 3***	25 mile/h 40 km/h
Note	#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)	*Creep function not available in this gear or above.
Note (2)	**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)	***Reverse is 30 km/h (19 mph).

Units: US Metric

Weights

Specification	Value
Operating Weight	12765 lb 5792 kg

CONFIGURED FOR SUCCESS

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 907 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. This engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand.

ENJOY ALL DAY COMFORT

All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

EFFICIENTLY POWERFUL

Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
“Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

WORK MADE EASY

All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

CUSTOMIZE YOUR EXPERIENCE

Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

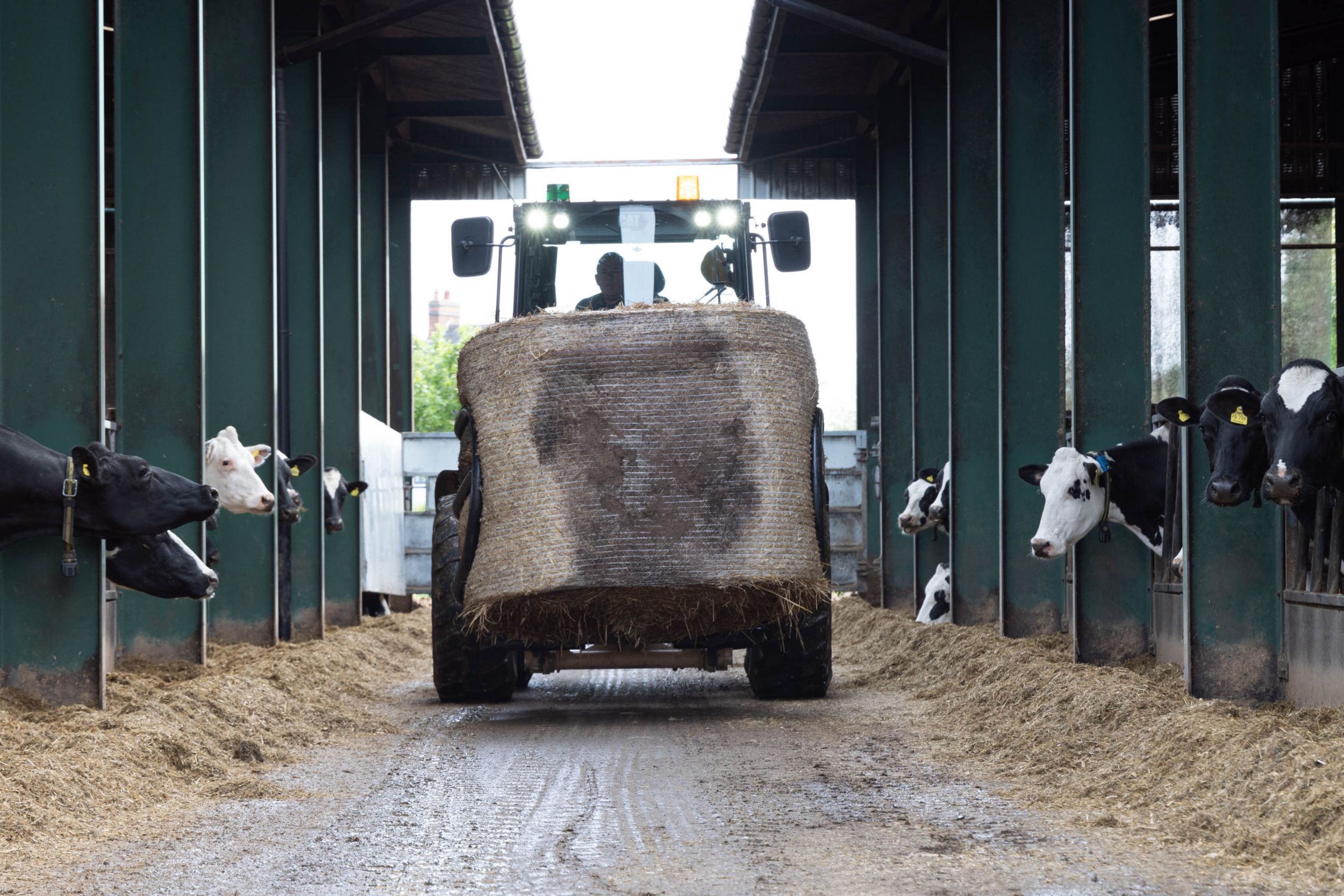

PURPOSE BUILT SPECIALTY MODELS

Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
The 907 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

AFTERMARKET AND SERVICES

Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
Integrated Technology available to reduce service costs and maintenance.

SUSTAINABILITY

The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
Shift on the go transmission, means no need to stop so you keep your momentum.

ELECTRICAL

Product Link™

HYDRAULICS

Motor, single drive with dedicated implement and steering pumps

OPERATOR ENVIRONMENT

Cab
–Doors (2), fixed glass
–Wipers, front and rear, full front coverage
–Windshield, front single piece
–Window, rear heated
–Radio ready, speakers and wiring
–Air vents, (4) screen, (7) directional
–Heating, mechanical control unit
–Sun visor, solid, front full width
–Interior light (incandescent)

OTHER

Scheduled Oil Sampling (S·O·S?) ports, engine oil and hydraulic oil

POWER TRAIN

Fuel pump, priming (manual)/water separator/drain
