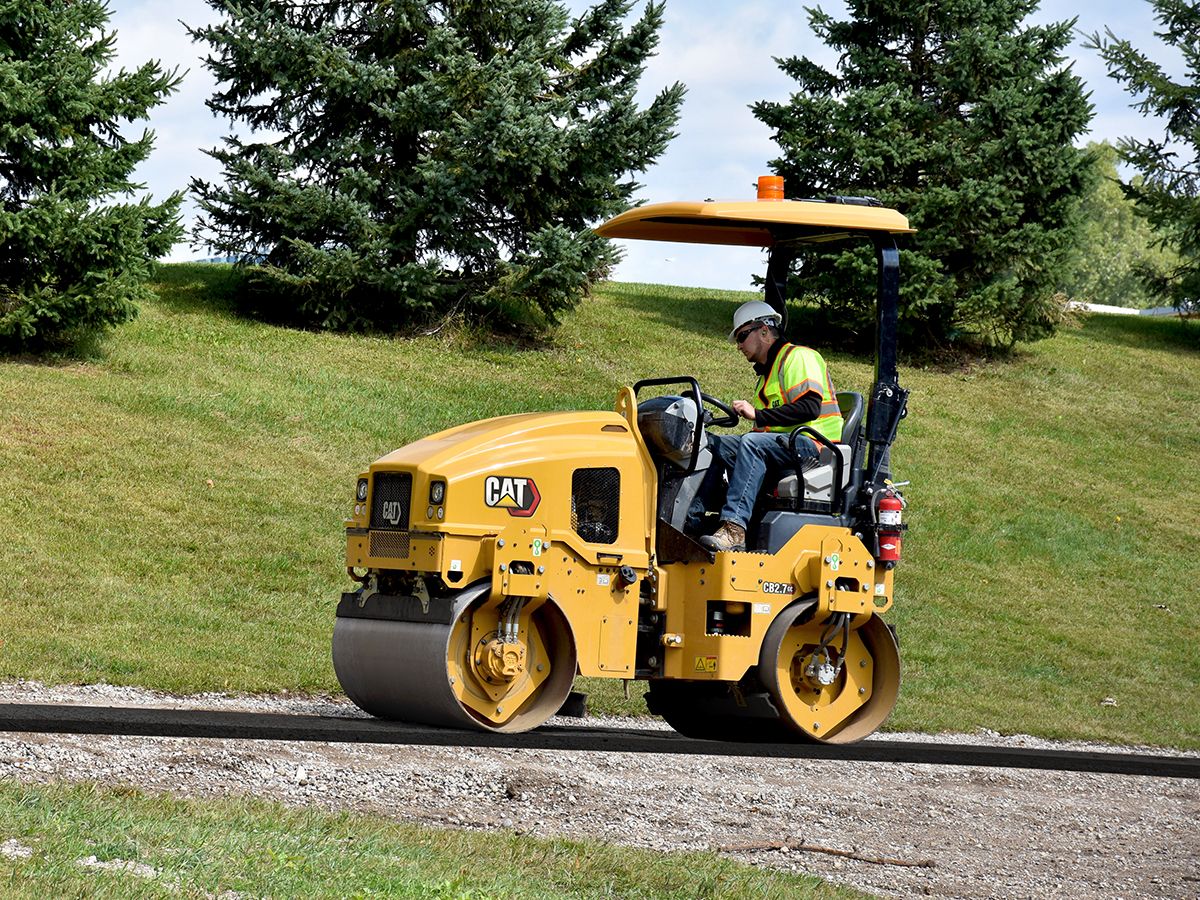

Tandem Vibratory Rollers CB2.7 GC

Get it dense and keep it smooth. Cat Tandem Vibratory Rollers do that and more. Caterpillar offers a vibratory system for every application. Most models have high frequency combined with low amplitude that match high paving speed on thin lifts as well as low frequency with high amplitude that match low paving speed on thick lifts of stiff material. As stand-alone units or as complements to high production tandem rollers, Cat Utility Rollers set the standards for versatility and reliability. A wide range of drum widths lets you precisely match the machine to the job requirements—whether it's a narrow shoulder, a patching project, a parking lot or a bicycle path. Vibratory systems are characterized by high frequency for fast working speed and high compaction energy for getting density in the fewest passes.

Images
Videos

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

Tandem Vibratory Rollers CB2.7 GC

Download product brochure #1

Download product brochure #2

Download product brochure #3

Download product brochure #4

1-800-268-1965

Request a Quote

Find a dealer near you

Units: US Metric

Dimensions

Specification	Value
Compaction Width	47.2 in 1200 mm
Drum Diameter	28.3 in 720 mm
Drum Width	47.2 in 1200 mm
Height - ROPS	102.2 in 2595 mm
Overall Length	102.2 in 2596 mm
Overall Width	51.7 in 1312 mm
Wheel Base	70.9 in 1800 mm

Units: US Metric

Engine

Specification	Value
Engine Power (1)	24.7 hp 18.4 kW
Engine Model	C1.7T

Units: US Metric

Operating Specifications

Specification	Value
Curb Clearance	17.8 in 453 mm
Drum Offset	2 in 50 mm
Ground Clearance	11.2 in 285 mm
Static Linear Load	66.2 lb/in 11.85 kg/cm
Travel Speed - Maximum	5.8 mile/h 9.4 km/h
Turning Radius - Inside Drum Edge	100 in 2540 mm
Turning Radius - Outside Drum Edge	147.2 in 3740 mm

Units: US Metric

Service Refill Capacities

Specification	Value
Water Spray Tank Capacity	52.8 gal (US) 200 l
Fuel Tank Capacity	14.37 gal (US) 55 l

Units: US Metric

Vibratory System

Specification	Value
Centrifugal Force - Maximum	6968.8 lb 31 kN
Nominal Amplitude - High	0.02 in 0.52 mm

Units: US Metric

Weights

Specification	Value
Standard Operating Weight with ROPS	5936 lb 2698 kg
Maximum Operating Weight with ROPS	7036 lb 3198 kg
Maximum Weight at Rear Drum	3075 lb 1398 kg
Maximum Weight at Front Drum	2861 lb 1301 kg

Simple to Operate

Convenient, dual-side access with large handrails and wide slip-resistant steps simplify ingress/egress

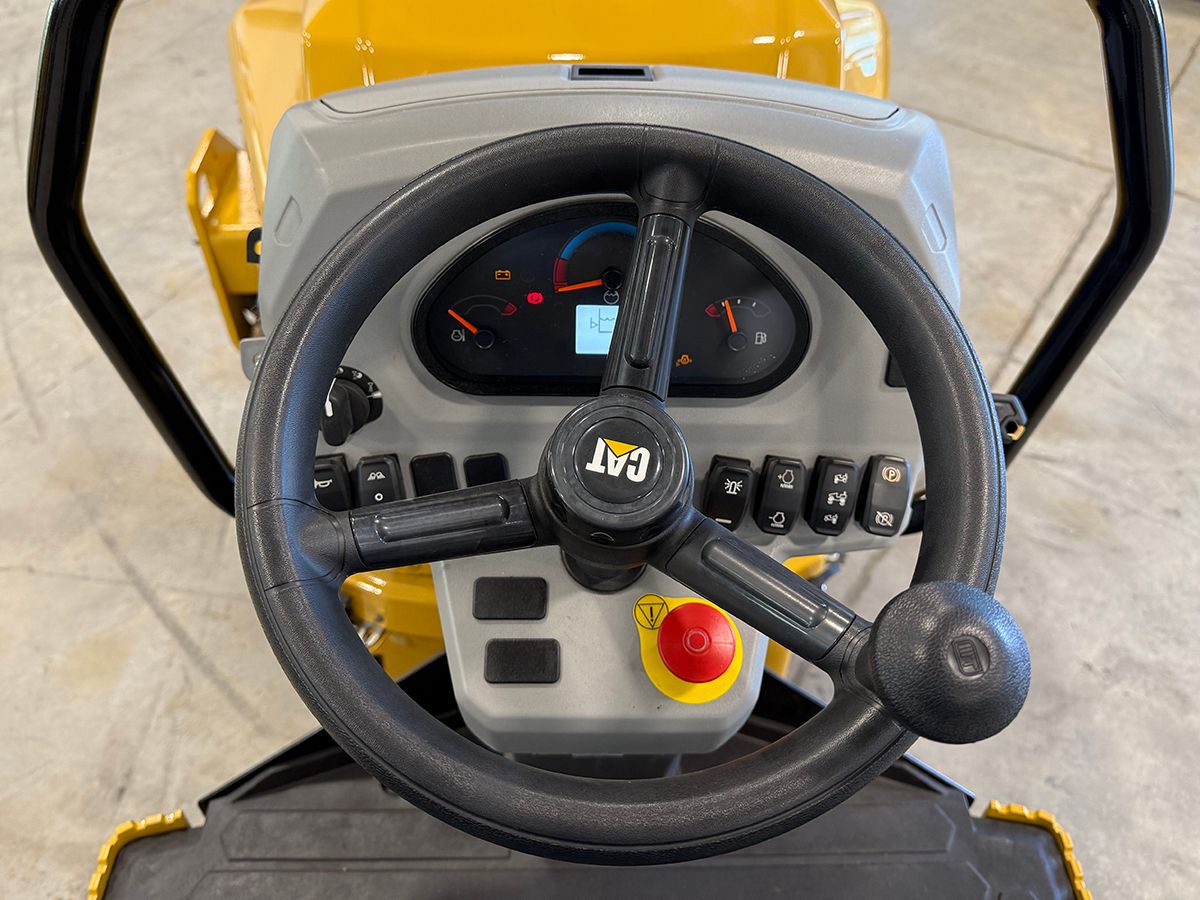

Operating console includes gauges for fuel level, water tank level, hour meter, engine coolant temperature as well as warning light indicators to help keep the operator informed
Durable rocker style switches provide easy activation for engine speed, vibratory drum selection, parking brake, lights, and the optional warning beacon
Engine speed is controlled with a momentary selection switch for low, mid-range, and high speed settings
Optional fore/aft and side to side seat adjustments combine with dual propel levers to enable good visibility to either side of the machine

Proven Powertrain

Efficient Cat^® C1.7T engine provides 18.4 kW (24.7 hp) of power (U.S. EPA Engine power is 17.8 kW (23.8 hp)?.
Auto-warmup feature is designed to prevent vibratory system activation and high engine idle speed until the hydraulic system reaches 10º C (50º F)
Auto-idle shutdown activates after the factory set default of 30 minutes, shutdown time can be adjusted with Cat Electronic Technician (Cat ET)?
Maximum gradeability occurs when operated with the mid-range engine speed of 1800 rpm selected, while maximum travel speed occurs at the high engine speed of 2200 rpm
Optional traction control is designed to minimize drum slips and enhance gradebility

Compaction Performance

Two vibratory frequencies of 50 Hz (3000 vpm) and 62 Hz (3720 vpm) correspond with engine speeds of 1800 rpm and 2200 rpm to provide working speed versatility

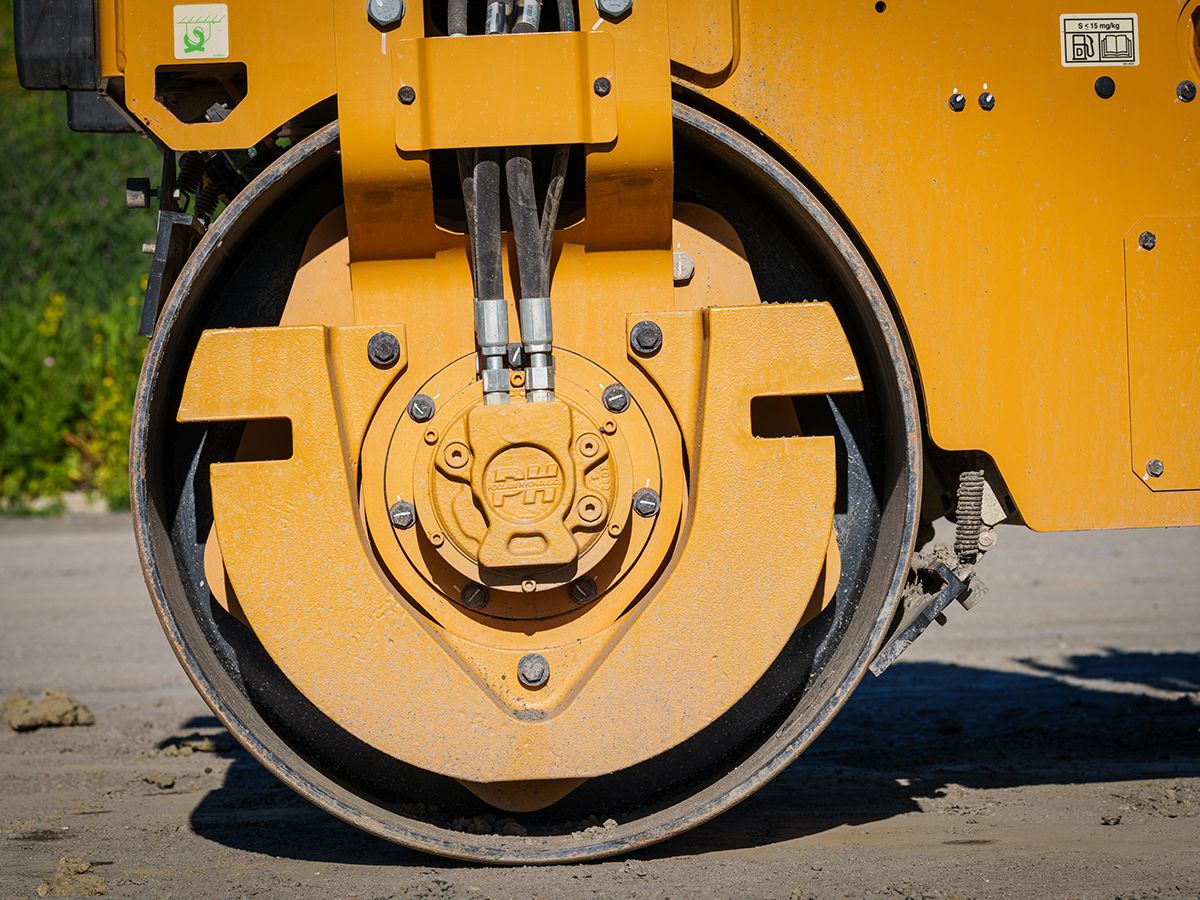

Front only, rear only, or both drum vibratory capablities help operators conform to a variety of conditions
Automatic vibratory control offers ramp in, ramp out adjustment, configurable through Cat ET
Optional Compaction Meter Value (CMV) is designd to keep the operator informed of compaction performance and provide quality control measures
Single point lift option and robust hitch design provides transport options as well as expanded application versatility for trench work
Ballast options mounted to the drum supports provide flexibility that increases static linear load for addtional compaction performance

Keep the Drums Clean

Pressurized water spray system with intermittent settings is designed to help operators match conditions for efficient performance
Triple filtration helps prevent clogs with filters located at the fill point, water pump, and spray nozzles
The automatic on/off feature deactivates the water spray system when the propel lever moves to neutral and activates the system when the propel lever moves from neutral

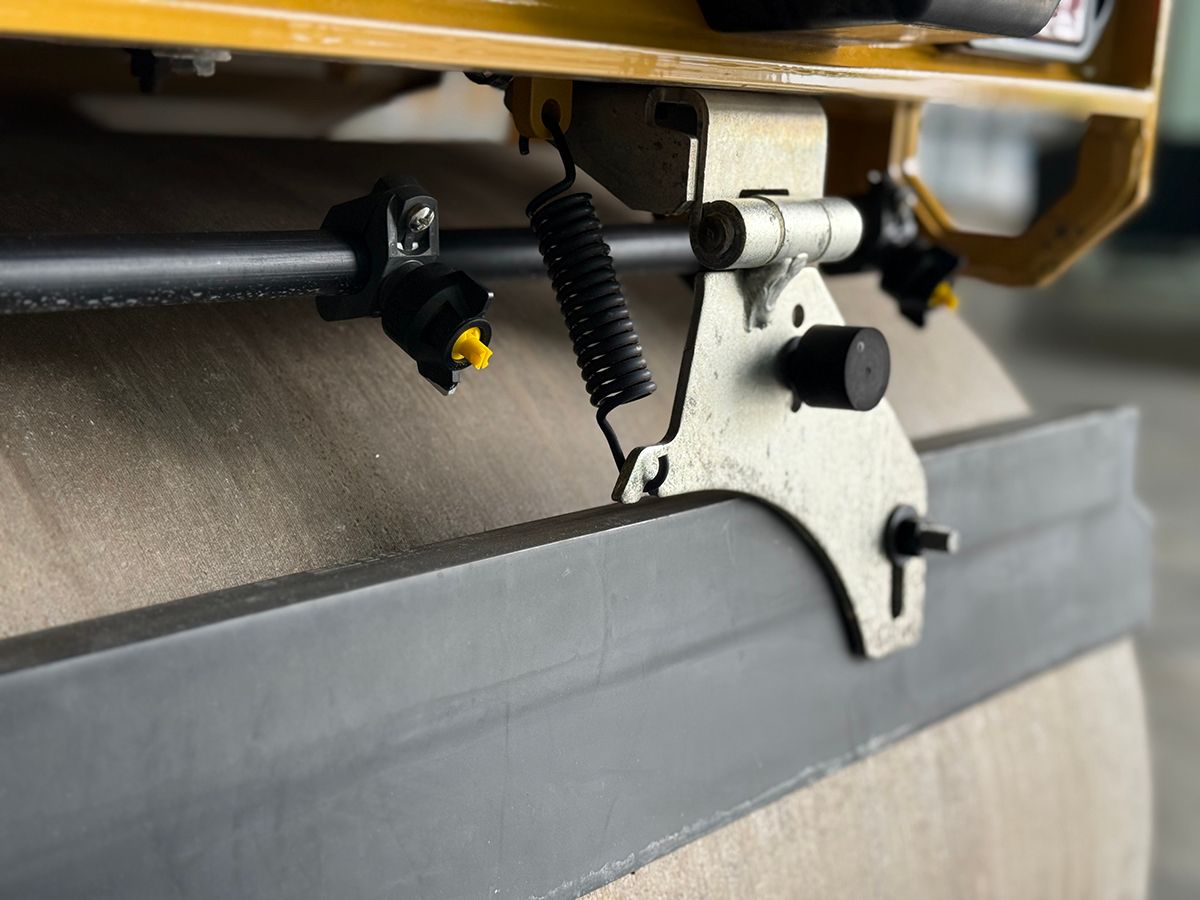

Adjustable folding or fixed design drum scraper options are available
The integrated freeze protection kit (optional) provides protection in cold temperatures when the machine is not in use

Service and Maintenance

VisionLink^® is a cloud-based software application that provides data to desktop or mobile devices, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer?
Cat Electronic Technician (Cat ET) capability provides service and trouble-shooting simplification
Oil change interval of 500 hours is designed to limit downtime and reduce routine maintenance costs
External fuel fill with lockable cap offers easy access, while providing security
LED lighting delivers good job site illumination while conserving energy
Uptime kits and Customer Value Agreements (CVA) are designed to limit downtime

Safety

An operator presence switch located in the seat is designed to prevent machine operation when not activated
The seat is equipped with a standard 75 mm (3"), high-visibility, seatbelt that is designed to simplify in-use recognition
Slip resistant steps and platform make it easier for operator ingress/egress
Quick-connect harness supports easy installation and removal of the warning beacon

Sustainability

The Cat® C1.7T engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours.
Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
Cat Scheduled Oil Sampling (S•O•S?) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
