New Equipment

We supply the best heavy equipment so you can build a better business!

Toromont Cat is the trusted dealership in Canada for authentic Caterpillar heavy equipment. We have a wide selection of Cat equipment that includes over 300 machines and 1,200 specialized product attachments for projects in a variety of industries such as construction, mining and forestry. With our extensive product line and first-class customer service, we aim to be your first choice when looking for new heavy equipment.

Caterpillar equipment is recognized and respected globally for its reliability and durability, and at Toromont Cat, we proudly maintain all of our new construction equipment to the highest standards so that it exceeds your expectations on the job site. Whether you’re looking for wheel loaders, excavators, dozers or articulated trucks, you can count on us to help you complete your projects with cost-effective and technologically advanced solutions.

When you choose to buy new heavy equipment with us, you will always be provided with quality machines and superior after-sales support.

If you’re currently working on a project that requires new heavy equipment, call us today!

To see all of our new heavy equipment currently for sale, click on the images below:

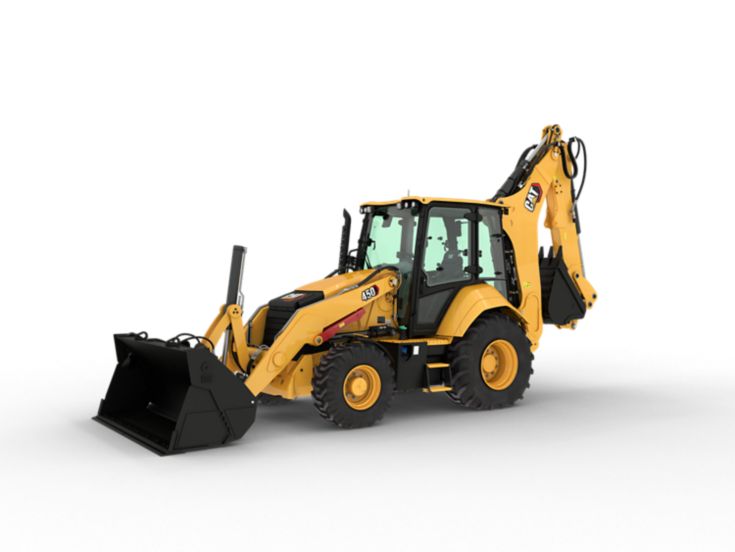

Center-Pivot Backhoe Loaders 450

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.

Center-Pivot Backhoe Loaders 450

Cat® Backhoe Loaders set the industry standard for operator comfort, exceptional performance, versatility and jobsite efficiency.
Units: USMetric

Axle Ratings

Rear Axle - Static 47756 lb 21662 kg
Rear Axle - Dynamic 19103 lb 8665 kg
Front Axle (4WD) - Dynamic 20233 lb 9186 kg
Front Axle (4WD) - Static 50582 lb 22964 kg
Front Axle, AWD - Static 50565 lb 22936 kg
Front Axle, AWD - Dynamic 20225 lb 9174 kg
Units: USMetric

Backhoe

Dig Depth - Standard 17 ft 5185 mm
Units: USMetric

Counterweights - Front - Minimum Recommendations

Standard Stick - MP Loader Bucket - 4WD no counterweight
Standard Stick - GP Loader Bucket - 4WD 255 lb 116 kg
Units: USMetric

Engine

Net Power - SAE J1349 131 hp 98 kW
Bore 4.13 in 105 mm
Stroke 5 in 127 mm
Displacement 268 in³ 4.4 l
Ratings at 2,200 rpm - Gross Power ISO 14396 143 hp 106 kW
Net Power - 2,200 rpm - SAE J1349 68 hp 51 kW
Net Peak Power Rating - SAE J1349 134 hp 100 kW
Net Power Rating at 2,200 rpm - SAE J1349 131 hp 98 kW
Net Peak Power Rating - ISO 9249 134 hp 100 kW
Net Torque Rise - 1,200 rpm 88 % 88 %
Net Peak Power - 1,800 rpm - SAE J1349 72 hp 54 kW
Gross Power - SAE J1995 74 hp 55 kW
Net Peak Power - 1,800 rpm - ISO 9249 73 hp 54 kW
Rated Net Power - 2,200 rpm - ISO 9249 68 hp 51 kW
Net Peak Power - 1,800 rpm - EEC 80/1269 73 hp 54 kW
Rated Net Power - 2,200 rpm - EEC 80/1269 69 hp 51 kW
Ratings at 2,200 rpm - Gross Power SAE J1995 146 hp 109 kW
Net Torque Rise - 1,400 rpm - SAE J1349 400 ft·lbf 540 N·m
Gross Power - ISO 14396 74 hp 55 kW
Net Torque Rise - 1,400 rpm 29%
Power Rating Conditions - No De-Rating Required Up To 7500 ft 2286 m
Net Power Rating at 2,200 rpm - ISO 9249 131 hp 98 kW
Engine Model C4.4 ACERT 106 kW (143 hp) Electronic – Turbo Intercooled
Net Peak Torque SAE J1349 307 ft·lbf 416 N·m
Emissions Engine meets U.S. EPA Tier 4 Final emission standards.
Note No derating required up to 2286 m (7,500 ft).
Units: USMetric

Hydraulic System

Pump Type Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm 58.1 gal/min 220 l/min
System Pressure - Loader 3800 psi 26200 kPa
System Pressure - Hitch/Box Scraper 2973 psi 20500 kPa
Type Closed Center
System Pressure - Backhoe 3800 psi 26200 kPa
Units: USMetric

Loader Bucket

Dig Depth - Standard 3 in 83 mm
Units: USMetric

Service Refill Capacities

Rear Axle (Center Housing) 5 gal (US) 19 l
Cooling System with Cab Heater 6 gal (US) 22.5 l
Cooling System with Air Conditioning 4.4 gal (US) 16.5 l
Front Axle (4WD) 2.9 gal (US) 11 l
Transmission (Autoshift) - AWD, Autoshift 4.8 gal (US) 18 l
Hydraulic Tank (Nominal) 14.3 gal (US) 54 l
Fuel Tank 42.3 gal (US) 160 l
Front Axle (Center Housing) 2.9 gal (US) 11 l
Planetaries 0.2 gal (US) 0.7 l
Diesel Exhaust Fluid (DEF) 5 gal (US) 19 l
Rear Axle - Planetaries 0.4 gal (US) 1.7 l
Front Axle (4WD) - Planetaries 0.2 gal (US) 0.7 l
Transmission - Power Shuttle - 2WD 4 gal (US) 15 l
Hydraulic System (Minimum) 34.4 gal (US) 130 l
Transmission - Power Shuttle - 4WD 4 gal (US) 15 l
Engine Oil - With Filter 2.3 gal (US) 8.8 l
Rear Axle 4.4 gal (US) 16.5 l
Hydraulic System 23.8 gal (US) 90 l
Hydraulic Tank 10.6 gal (US) 40 l
Note Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur
Units: USMetric

Steering

Stroke 9.29 in 236 mm
Rod Diameter 1.65 in 42 mm
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket 37.75 ft 11.5 m
Turning Circle (inner wheel not braked) - Outside Front Wheels 27.55 ft 8.396 m
Note AWD cylinder, one (1) double-acting.
Bore 3.35 in 85 mm
Power Steering Hydrostatic HMU
Type Front Wheel
Turning Circle - (inner wheel not braked) - Outside Front Wheels 26.8 ft 8.18 m
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket 36 ft 10.97 m
Axle Oscillation 11°
Units: USMetric

Tires

Standard Configuration of Front/Rear Tires Front: 12.5 80/16.9; Rear: 16.9-24
Units: USMetric

Transmission

Autoshift Transmission - Forward - 6th 25.2 mile/h 40.6 km/h
Autoshift Transmission - Reverse - 3rd 16.9 mile/h 27.2 km/h
Power Shuttle Transmission - Forward 3rd 13 mile/h 20 km/h
Autoshift Transmission - Reverse - 2nd 7.8 mile/h 12.5 km/h
Autoshift Transmission - Forward - 5th 16.9 mile/h 27.2 km/h
Power Shuttle Transmission - Reverse 4th 23 mile/h 36 km/h
Power Shuttle Transmission - Forward 1st 3.4 mile/h 5.4 km/h
Autoshift Transmission - Forward - 4th 12.3 mile/h 19.8 km/h
Power Shuttle Transmission - Reverse 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission - Forward 2nd 5.5 mile/h 8.9 km/h
Power Shuttle Transmission - Reverse 3rd 13 mile/h 20 km/h
Power Shuttle Transmission - Reverse 1st 3.4 mile/h 5.4 km/h
Autoshift Transmission - Forward - 1st 3.7 mile/h 6 km/h
Autoshift Transmission - Forward - 2nd 6 mile/h 9.6 km/h
Autoshift Transmission - Reverse - 1st 3.7 mile/h 6 km/h
Autoshift Transmission - Forward - 3rd 7.8 mile/h 12.5 km/h
Power Shuttle Transmission - Forward 4th 23 mile/h 36 km/h
Note Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 21×24 rear tires.
Units: USMetric

Weights

Operating Weight - Maximum 29321 lb 13300 kg
Cab - ROPS/FOPS 359 lb 163 kg
Air Conditioning 101 lb 46 kg
Front Counterweight - Counterweights - Option 2 530 lb 240 kg
Operating Weight - Estimated* 24039 lb 10904 kg
Backhoe Quick Coupler +151 kg (+333 lb)
Note (5) ED = Extreme Duty
Operating Weight - Maximum - ROPS Capacity 29321 lb 13300 kg
Note (1) *Machine equipped with 15-19.5 12 ply front and 21L-24 16 ply rear, AWD, OROPS, 1.34 m³ (1.75 yd³) general purpose bucket with bolt-on cutting edge, standard stick, 610 mm (24"") heavy-duty backhoe bucket.
Cab, ROPS/FOPS +243 kg (+536 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) GP (Hook-On) –150 kg (–331 lb)
MP Bucket (1.00 m3/1.31 yd3) - With Fold-Over Forks 2018 lb 915 kg
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Hook-On) +160 kg (+353 lb)
Note (4) HD = Heavy Duty
Note (2) GP = General Purpose
Counterweight 2147 lb 974 kg
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Hook-On) +85 kg (+187 lb)
MP Bucket (1.00 m3/1.31 yd3) - Without Fold-Over Forks 3622 lb 1642 kg
Loader Bucket - 1.34 m³ (1.75 yd³) MP ED (Pin-On) +290 kg (+639 lb)
Loader Bucket - 1.34 m³ (1.75 yd³) MP HD (Pin-On) +214 kg (+472 lb)
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Pin-On) +80 kg (+176 lb)
Front Counterweight - Counterweights - Option 1 255 lb 115 kg
Loader Bucket - 1.53 m³ (2.0 yd³) GP (Hook-On) –73 kg (–162 lb)
Extendible Stick +338 kg (+745 lb)
Loader Quick Coupler +250 kg (+551 lb)
Note (3) MP = Multi Purpose
Rear Counterweight 198 lb 90 kg
Front Counterweight - Counterweights - Option 3 1015 lb 460 kg
Ergonomic Operator Station
Adjustable Seat Mounted Controls improve ergonomics by increasing operator comfort and legroom. Operators have Loader and Backhoe Controls in the palm of their hands, whether they are facing the Loader, the Backhoe, or sitting off set. Variable Speed Steer reduces operator fatigue in applications, such as truck loading, by reducing the number of steering wheel rotations required to turn the machine. The new Spring Applied Hydraulically Released (SAHR) Parking Brake is controlled by simply pressing a button.
Advanced Hydraulics
The Cat Backhoe Loader’s load sensing piston pump provides full hydraulic lifting and digging forces at any engine speed. Variable flow pump matches hydraulic power to work demands. The advanced hydraulic system allows the operator to adjust Loader and Backhoe Auxiliary Flow matching attachment specifications, program Loader Bucket Kickout and Return to Dig, and Enable Parallel Lift.
Machine Performance
The Cat C4.4 ACERT™ engine delivers solid performance and meets U.S. EPA Tier 4 Final/EU Stage IV emission standards by utilizing Selective Catalytic Reduction technology with a Diesel Oxidation Catalyst. The new Backhoe design and optimized Loader Linkage increases lift capacity and breakout forces on both ends of the machine. A redesigned Loader System provides superior machine balance and stability regardless of the ground conditions.
Machine Versatility
The all new Integrated Tool Carrier (IT Coupler) for Single Tilt Loader Arm configurations are available from the factory or for simple field installation. The Cat Backhoe Loader with Integrated Tool Carrier (IT Coupler) will be the most versatile machine on the job site providing quick connection to a variety of Cat Attachments.
Cat Attachments
A variety of Mechanical and Hydraulic Cat Backhoe Couplers are available from the factory or for field installation. Options include, but not limited to, Dual Lock Pin Grabber Couplers and Pin Lock Couplers. Redesigned General Purpose and Multi Purpose Loader Buckets increase digging performance and improve bucket durability for long term value.
STANDARD EQUIPMENT
5185 mm (17 ft) center pivot excavator style backhoe
