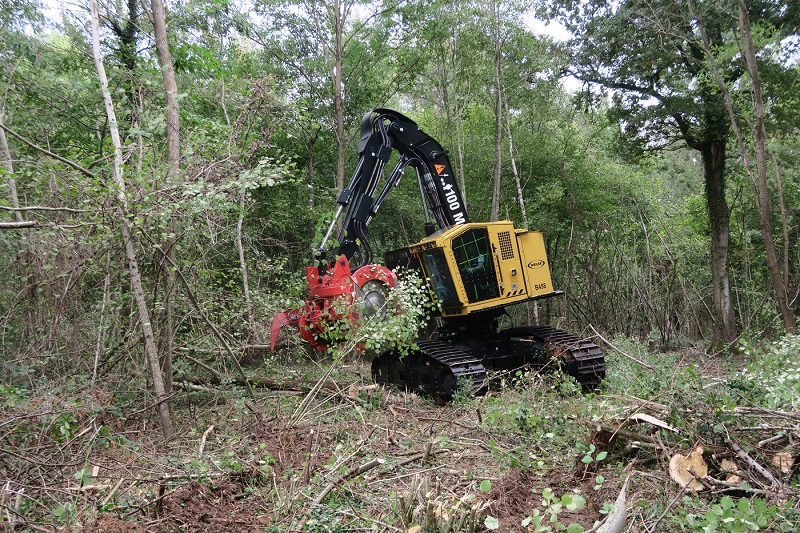

B 458A Track Feller Buncher
B 458A
B 458A Track Feller Buncher
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
| Description | Specification |
|---|---|

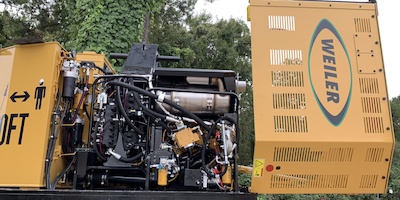

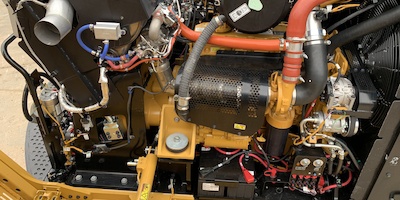

| Engine Model (US & Canada) | Cat® C9.3 Tier 4 Final |
| Engine Model (Outside US & Canada) | Cat® C9.3 Tier 3 |
| Gross Power | 330 hp (246 kW) |
| Engine Displacement | 568 in³ (9.3 L) |
| Weight w/out Head (US & Canada) | 79,221 lb (35 934 kg) |
| Weight w/out Head (Outside US & Canada) | 78,471 lb (35 594 kg) |
| Maximum Flow | 322 gpm (1220 L/min) |
| Max. Reach (w/ 201 saw) | 26’ 10” (8.19 m) |
| Lift at Max. Reach (no head) | 13,918 lb (6313 kg) |
| Tractive Effort | 81,229 lbf (36 845 kgf) |

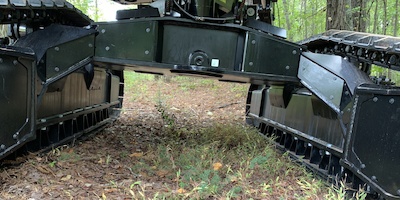

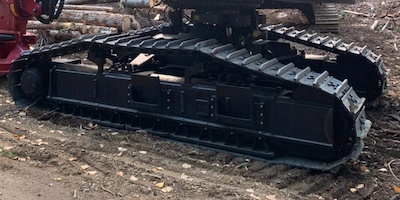

| Undercarriage Size | 336 HD HEX |
| Undercarriage Pitch | 8.5” (216 mm) |
| Ground Clearance | 35” (881 mm) |
| Track Gauge | 114” (2883 mm) |
| Track Length | 191” (4856 mm) |
| Leveling System Capability | 21° Forward, 11° Side-to-Side |
| Fuel Tank Capacity | 216 gal (819 L) |
| Engine Oil Capacity | 10.6 gal (40 L) |
| Hydraulic System Capacity | 79.8 gal (302 L) |
| Transport Width | 11’ 11” (3.62 m) |
| Height | 12’ 11” (3.94 m) |
| Length (boom ext., w/201 saw) | 34’ 1” (10.39 m) |
| Length (boom tuck., no head) | 25’ 7” (7.81 m) |
| Base configuration includes standard feller buncher boom and stick, roller frames in the wide position, and 28” (710 mm) single grouser shoes. |
